Hydraulic Lifter Garbage truck
3.5T Hydraulic Lifter Garbage Truck(LHD/RHD)
The product features compact and maneuverable design, excellent sealing performance, and strong loading capacity. It is widely used for waste collection and transportation in various settings with trash bin collection systems, including small urban streets, residential communities, parks, stations, and other public areas.
Wheelbase(mm)
2800
Gross weight(kg)
4495
Contact:
Ultra-Large Capacity & Intelligent Design
Effective volume ≥4m³ with lightweight construction for maximized payload.Rear-mounted bin lifter and rear-tipping mechanism ensure rapid, hygienic waste unloading with full sealing and zero leakage.
Dual Leakage Prevention
Boat-shaped tank + premium welded sealing technology: Advanced anti-leakage structure eliminates spillage risks.Reinforced joints and multi-layer coatings withstand corrosive environments, ensuring long-term durability.
Compact & Agile Performance
Nimble maneuverability for tight spaces (alleys, residential zones, parks) with a minimal turning radius.Seamless integration with large-tonnage waste compactors for efficient multi-stage waste management.
Specialized vehicle custom chassis design
Adopting a sanitation-specific chassis, which is developed specifically for the unique working conditions of sanitation operations, the chassis and upper structure are designed and manufactured as an integrated whole. This ensures higher compatibility and more reliable vehicle performance.
Triple verification ensures stable quality.
The vehicle has passed through Chu Feng's three-level verification (components, systems, and complete vehicle), ensuring stable quality.
PARAMETER
| Basic parameters | |
| Vehicle model | 3.5T Hydraulic Lifter Garbage Truck |
| L×W×H(mm) | 5500×1850×2160 |
| Steering Type | LHD/RHD |
| Wheelbase(mm) | 2800 |
| Gross weight(Kg) | 4495 |
| Curb weight(Kg) | 3100 |
| Payload(Kg) | 1265 |
| Max speed(Km/h) | 85 |
| Seating Capacity | 2人 |
| Number of Seat Rows(mm) | Single Row |
| Chassis Parameters | |
| Braking system | ABS |
| Parking Brake | Mechanical Handbrake |
| Tire Specifications | 185R15LT 8PR |
| Number of Tires | 6 |
| Motor(Kw) | Rated / peak power-60/100 |
| Power system | |
| Brand | CATL |
| Battery Capacity（Kwh） | 41.86 |
| Battery Type | LFP |
| Motor Type | Permanent Magnet Synchronous Motor (PMSM) |
| Superstructure Configuration | |
| Cargo Volume(m³) | 3185×1600×1045 |
| Loading Cycle Time(s) | ≤17 |
| Waste Discharge Time(s) | ≤60 |
| Oil Pump | / |
| Hydraulic Cylinder | / |
| other | |
| Air Conditioning Type | Heating, Cooling |
| Power Windows | Standard Equipment |
| Remote Key | Standard Equipment |
| Electronic Central Locking | Standard Equipment |
Keyword:
3.5T Hydraulic Lifter Garbage Truck(LHD/RHD)

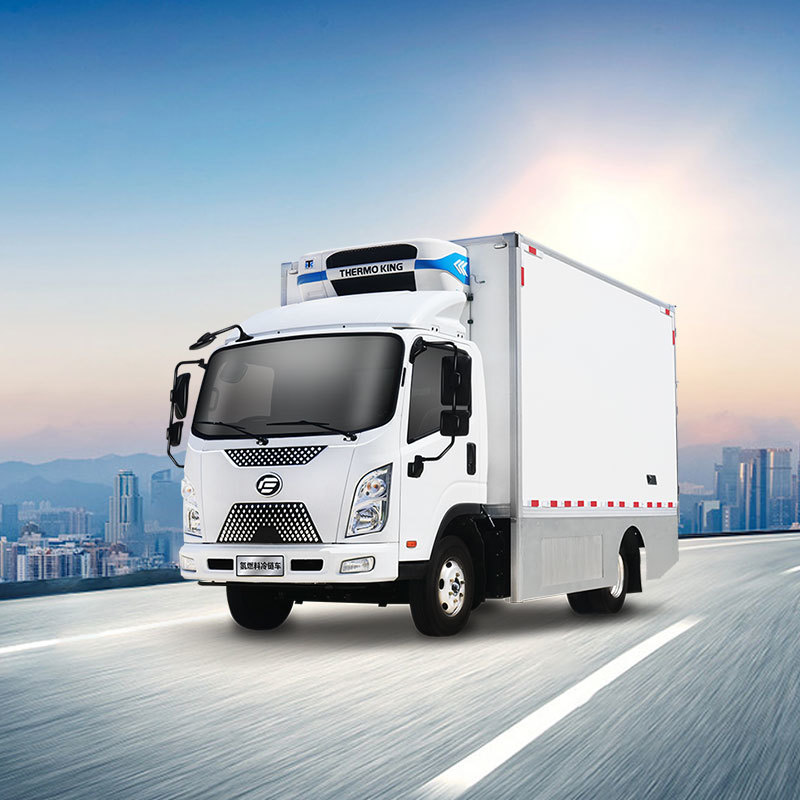

4.5T Hydrogen Fuel Cell Refrigerated Truck
