EV17 Light Truck(LHD/RHD)-Hubei Xinchufeng MOTOR VEHICEL Co. Ltd-Heavy Truck

EV17 Light Truck(LHD/RHD)

Every Save is Profit Earned

EV17 Light Truck(LHD/RHD)

Car size(mm)

5990×2150/2210×3100

Wheelbase (mm)

3300

Power Battery(khw)

81.14

Rated / peak power(kw)

64/130

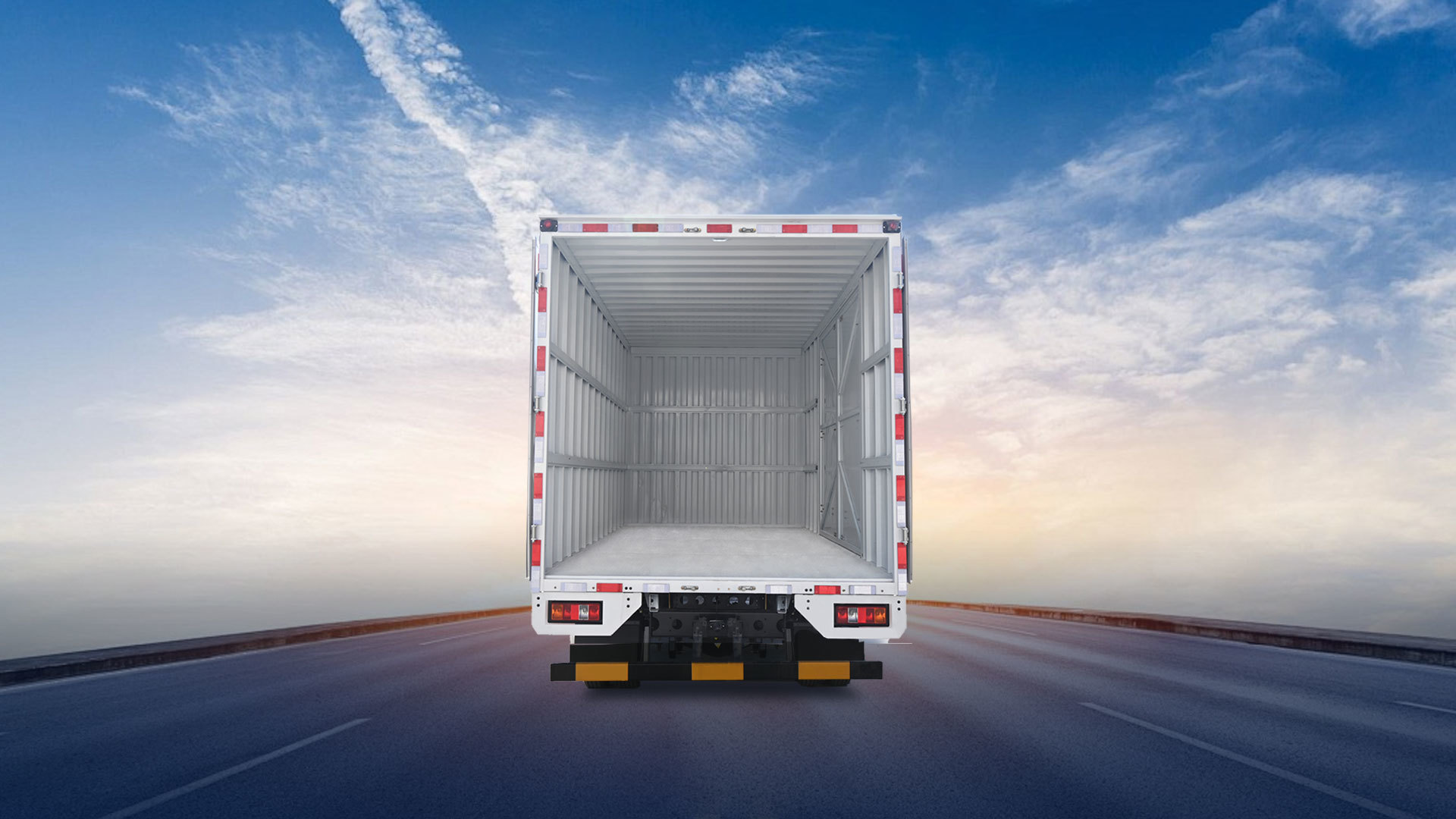

High Load Capacity

Lightweight frame assembly design with channel-type structural beams, featuring an outer width of 800mm.Generous cargo volume of 18.9m³ for effortless loading.

Long-range

Equipped with CATL Lithium Iron Phosphate (LFP) battery, delivering a maximum range of 230 km.Powered by Shanghai Jingjin electric motor with a 130 kW peak power output, ensuring robust performance.

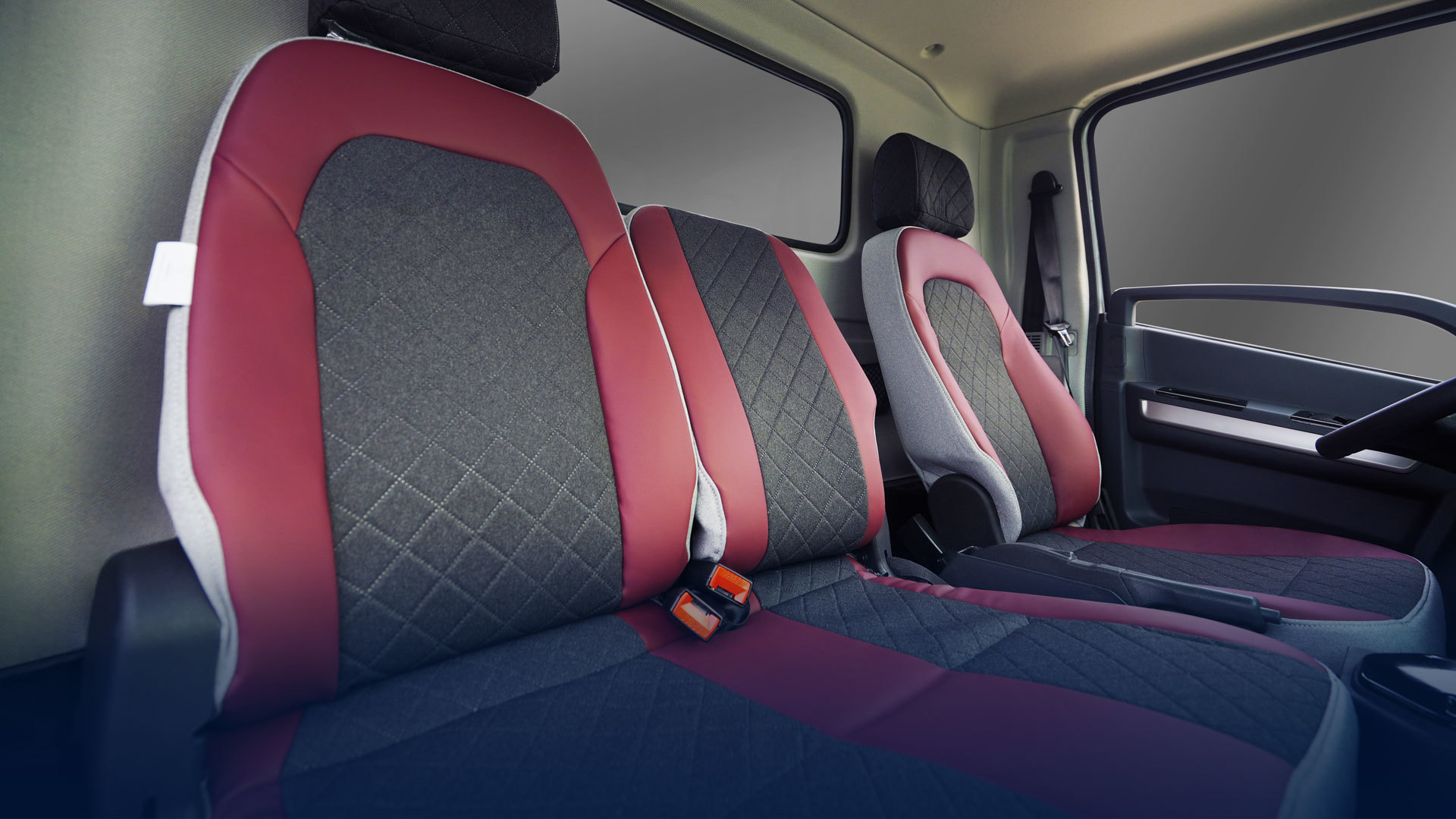

Premium Comfort

Walk-through seating configuration for seamless driver-passenger movement.Multi-function steering wheel, central touchscreen, and cruise control for intuitive operation.Rotary gear selector for smooth, effortless driving transitions.

全部分类

Advantage
Parameter
Related products
Inquiry

Car model atlas

Parameter

Basic parameters

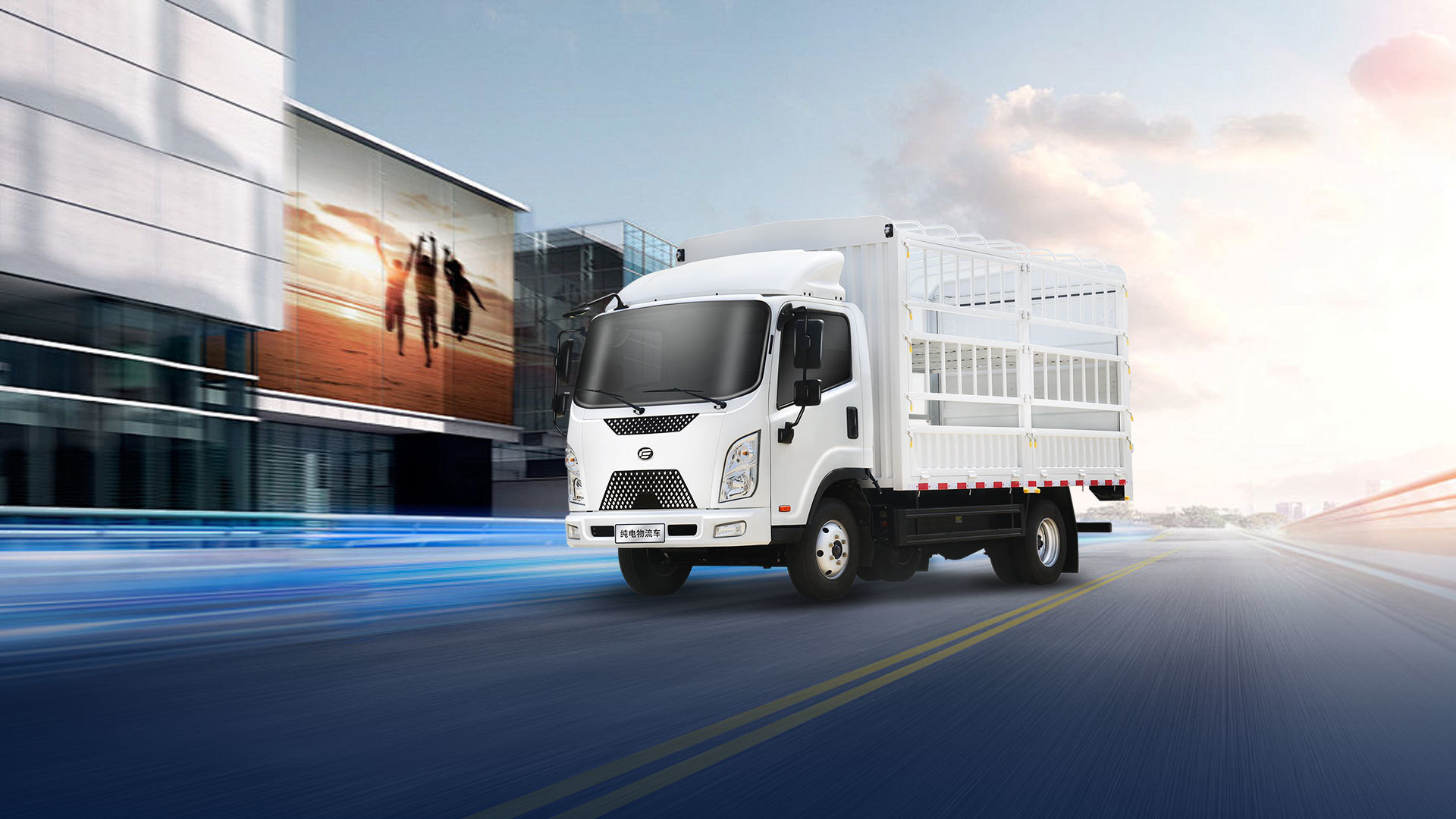

Vehicle model	EV17 Box Truck	EV17 Stake Truck
L×W×H(mm)	5990×2050,2100,2150,2200×3100,3200	5990×2100,2200×3100
Container(mm)	4120,4080×2000,2100×1900,2000,2100	4120×2000,2100×400
Wheelbase	3300	3300
Gross weight(Kg)	4495	4495
Curb weight(Kg)	2970,2820，3060	3060
Payload(Kg)	1330,1480,1240	1240
Cab Exterior Width(mm)	1916	1916
Max speed(Km/h)	90	90
Seating Capacity	3people	3people
Number of Seat Rows(mm)	Single Row	Single Row
Chassis Parameters
Braking system	Front Drum & Rear Drum	Front Drum & Rear Drum
Suspension system	Leaf Spring Suspension	Leaf Spring Suspension
Parking Brake	Optional Electronic Handbrake	Optional Electronic Handbrake
Tire Specifications	7.00R16LT 8PR	7.00R16LT 8PR
Number of Tires	6	6
Power system
Motor((Kw))	Rated / peak power-64/130	Rated / peak power-64/130
Brand	CATL	CATL
Battery Capacity(Kwh)	81.14	81.14
Battery Type	LFP	LFP
Other
Display Screen	7-inch / optional 10-inch	7-inch / optional 10-inch
Air Conditioning Type	Heating, Cooling	Heating, Cooling
Power Windows	Standard Equipment	Standard Equipment
Remote Key	Standard Equipment	Standard Equipment
Electronic Central Locking	Standard Equipment	Standard Equipment
