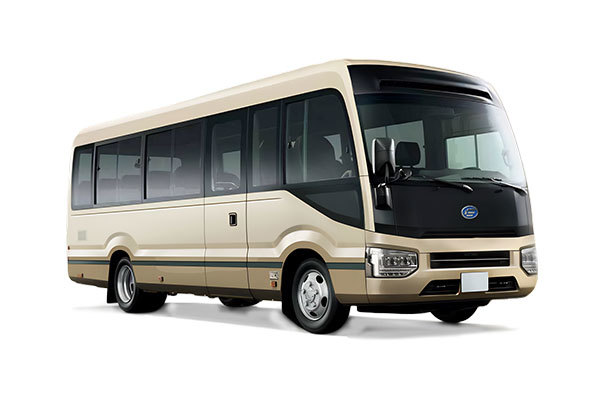

Rugged Frame Long Range Custom Electric Mobility
23/28 Seats EV Bus
Chu Feng Small Electric Bus, built with a robust and reliable body-on-frame chassis. Equipped with top-tier CATL batteries, it offers two power options (140/165 kWh) and a range of 400-500 km, effortlessly meeting daily operational needs. We provide flexible customization to tailor the vehicle to your specific operational scenario.
Wheelbase(mm)
3935
Gross weight(kg)
10000
Contact:
All categories
PARAMETER
| Dimensions and Weight | |
| Overall Lenth x Width x Height (mm) | 7125*2080*2680 |
| Wheelbase (mm) | 3935 |
| Max Speed (km/h) | 90 |
| Curb Weight(kg) | 6200 |
| Gross Weight(kg) | 10000（First3500/Last6500） |
| Gradeability(%) | ≥34 |
| Tyre Size | 7.00R16LT 8PR/10PR |
| Dynamic Performance | |
| Battery Type | LFP |
| Battery Capacity(Kwh) | 140 / 164.48 |
| WLTC Range(km) | >400 / >500 |
| Rated / Peak Power | 90 / 180 kW |
| Rated / Peak torque | 210/450（N.m） |
| Charging method | Standard fast charging |
| Driver Form | Rear Motor, Rear Drive |
| Battery Pack/Motor/MCU Warranty | 5 Years Or 200,000 KM |
| Body System | |
| Passenger door | Electric outward-swinging single door (overhead door) |
| Driver's seat | Adjustable driver's seat, leather |
| Front and rear inner top | ABS skin covering |
| Expert prunus salicina frame | Optional configuration |
| Overhead interior trim panel | Medium density fiberboard veneer |
| Rear headlights | Rear combination lamp, LED |
| Front headlights | Front combination lamp, halogen bulb |
| Full vehicle glass | Fully enclosed tempered white side windows, laminated windshield at the front, tempered glass at the rear, and built-in sliding driver's window. |
| Sun visor | ● |
| Side curtain | ○ |
| Interior lighting | Ceiling light Optional strip light |
| Stepping light | ● |
