Watering Truck

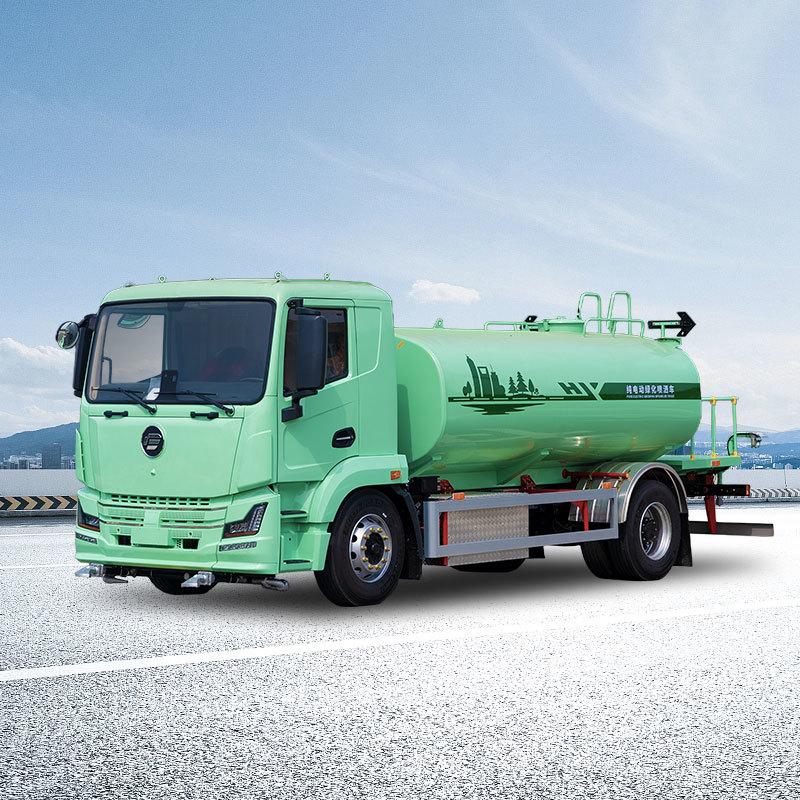

12T Watering Truck(LHD/RHD)
Integrated road flushing, dust suppression, and pesticide spraying capabilities for urban roads, plazas, warehouses, and green spaces.Dual-purpose design for sanitation maintenance and precision agricultural irrigation.
Wheelbase(mm)
3600
Gross weight(kg)
12495
Contact:
Aesthetic and Durable
The tank features a 6.5m³ capacity, crafted with advanced anti-corrosion technology and high-temperature baking paint processes, ensuring exceptional durability and long-term performance.
User-Friendly Electric Control System
Equipped with a standard electric control console, the vehicle supports both manual and remote-control operations, delivering intuitive and effortless functionality.
Expansive Platform for Enhanced Utility
Spray width >14m | Range >20m；Multi-directional coverage: front flushing, side spraying, rear sprinkling, and remote-controlled water cannon.Oversized rear platform for enhanced operational flexibility and safety.
Specialized Vehicle Custom Chassis Design
The vehicle adopts a sanitation-specific chassis, which is specially developed for the unique working conditions of sanitation operations. The chassis and upper structure are designed and manufactured as an integrated unit, resulting in a higher degree of compatibility and ensuring the vehicle's reliable performance.
The quality is stable through a three-tier verification process.
The vehicle has passed the three-tier verification by ChuFeng (including components, systems, and whole vehicle), ensuring stable quality
PARAMETER
| Basic parameters | |
| Vehicle model | 12T Watering Truck |
| L×W×H(mm) | 7000×2420×2815 |
| Wheelbase | 3800 |
| Gross weight(Kg) | 12495 |
| Curb weight(Kg) | 6100 |
| Payload(Kg) | 6200 |
| Km/h-Max speed(Km/h) | 90 |
| Seating Capacity | 3 |
| Number of Seat Rows(mm) | Single Row |
| Chassis Parameters | |
| Braking system | Dual-circuit air brake with ABS |
| Parking Brake | Mechanical Handbrake |
| Tire Specifications | 8.25R20 16PR,245/70R19.5 16PR, 255/70R22.5 16PR |
| Number of Tires | 6 |
| Motor(Kw) | Rated / peak power-120/240 |
| Power system | |
| Brand | CATL |
| Battery Capacity（Kwh） | 192.54 |
| Battery Type | LFP |
| Motor Type | Permanent Magnet Synchronous Motor (PMSM) |
| Superstructure Configuration | |
| Cargo Volume(m³) | 6.5 |
| Other | |
| Air Conditioning Type | Heating, Cooling |
| Power Windows | Standard Equipment |
| Remote Key | Standard Equipment |
| Electronic Central Locking | Standard Equipment |
